The E2M80 is a powerful, oil-lubricated, two-stage rotary vane vacuum pump designed for demanding industrial and scientific applications. With a pumping speed of 80 m³/h and an ultimate pressure of 1.5 × 10⁻³ mbar, it delivers excellent performance for generating high vacuum and is ideal for processes that require a consistent and efficient vacuum supply.
The two-stage design provides high evacuation capacity and faster vacuum creation, making the E2M80 a preferred choice for applications such as vacuum coating, vacuum filtration, and the chemical industry. The pump is known for its high reliability, durability, and low maintenance costs. It operates quietly and efficiently, making it suitable for use in various industrial systems and laboratory environments.
The E2M80 features a robust construction that meets the demands of continuous operation and, with long maintenance intervals, provides a cost-effective and reliable solution for vacuum generation.
E2M80 Technical Data
| Technical Specification | 50 Hz | 60 Hz |
|---|---|---|
| Max. Capacity | 80 m3/h-1 | 96 m3/h-1 |
| Pumping Speed | 74 m3/h-1 | 90 m3/h-1 |
| Ultimate Pressure without Gas Ballast | 3.0E-03 mbar | 3.0E-03 mbar |
| Ultimate Vacuum with Gas Ballast | 5.0E-03 mbar | 5.0E-03 mbar |
| Inlet Connection | 40 ISO-F/NW | 40 ISO-F/NW |
| Outlet Connection | 25 NW | 25 NW |
| Max. Permissible Outlet Pressure | 0.5 bar (g) | 0.5 bar (g) |
| Max. Water Vapor Tolerance | 5 mbar | 5 mbar |
| Max. Water Vapor Capacity | 0.3 kg/h-1 | 0.3 kg/h-1 |
| Max. Gas Ballast Flow | 1.4 m3/h-1 | 1.4 m3/h-1 |

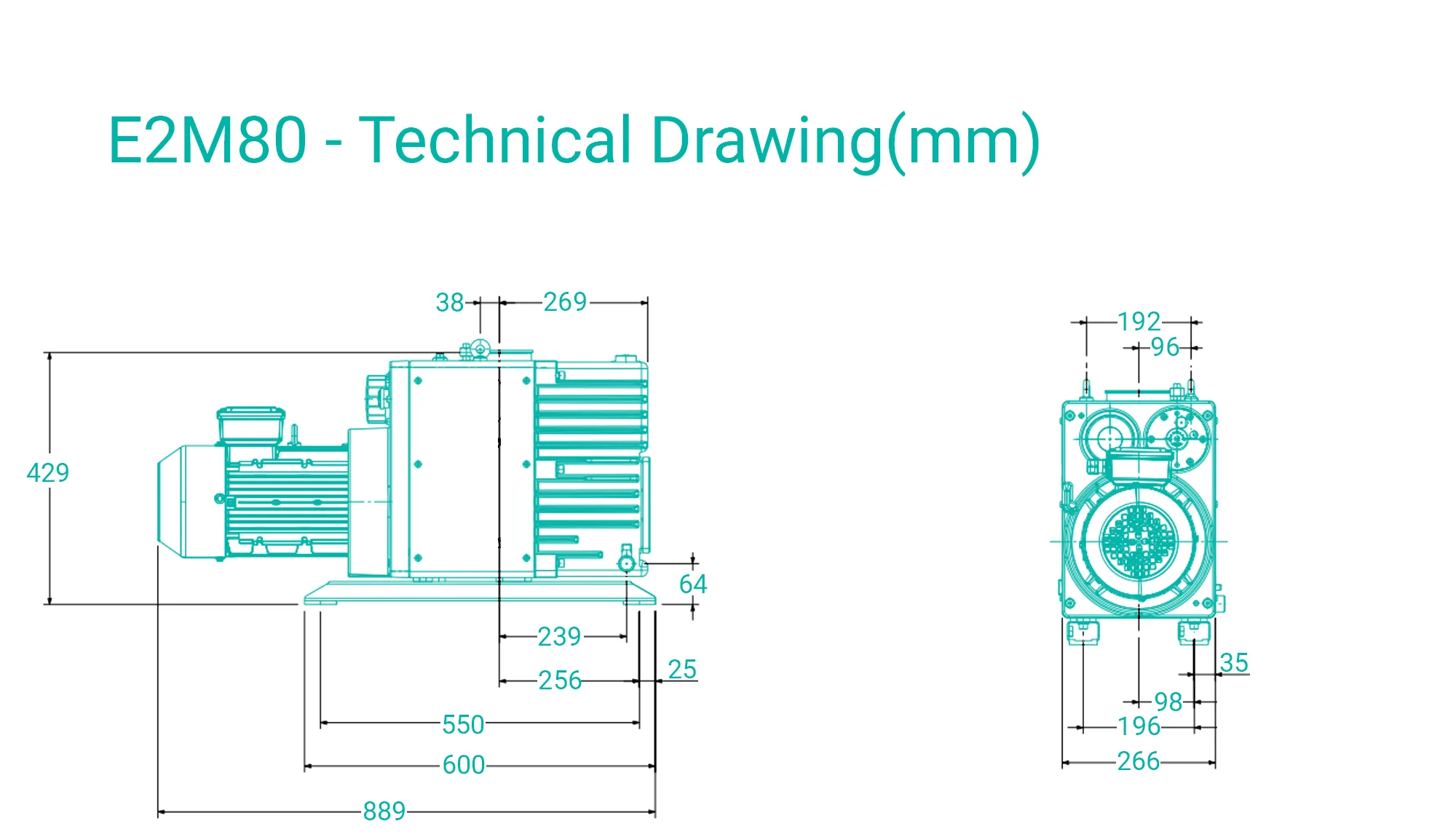

| Dimensions (LxWxH) | 889 x 266 x 429 mm | 889 x 266 x 429 mm |
| Weight approx. | 104 kg | 104 kg |
| Motor Protection | IP 55 | IP 55 |
| Motor Rated Power | 2.2 kW 50Hz | 3 kW 60Hz |
| Noise Level | 65 dB(A) | 65 dB(A) |
| Oil Fill (max.) | 4/6.3 l | 4/6.3 l |
| Recommended Oil | Ultragrade 70 (E2M HC, AZ and EX)/PFPE Lubricant (E2M FX) | Ultragrade 70 (E2M HC, AZ and EX)/PFPE Lubricant (E2M FX) |
Variant Technical Data
| Product Description | Order No. |
|---|---|
| E2M 80 HC IE3 ASIA 50/60 Hz | A36504934 |
| E2M 80 HC IE3 EU/US 50/60 Hz | A36504940 |
| E2M 80 FX IE3 ASIA 50/60 Hz | A36517934 |
| E2M 80 FX IE3 EU/US 50/60 Hz | A36517940 |
| E2M 80 AZ IE3 ASIA 50/60 Hz | A36507934 |
| E2M 80 AZ IE3 EU/US 50/60 Hz | A36507940 |
Accessories
| Product Description | Order No. | |
|---|---|---|
| Inlet Dust Filter | A44202000 | ITF100 |
| High-Capacity Inlet Dust Filter | A44302000 | ITM100 |
| Inlet Trap | A44102000 | ITO100 |
| Chemical Inlet Trap | A44402000 | ITC100 |
| Outlet Mist Filter (clean) | A46203000 | MF100 |
| Outlet Mist Filter (toxic) | A46211000 | MF100AE |
| Oil Return Kit for Outlet Mist Filter | A50004000 | |
| Outlet Trap | A46103000 | CP100 |
| Electric GB EM40/80 | A50017930 | EBV300D |
| Vibration Damper | A24801405 |
