The SOGEVAC SV 630 BF rotary vane vacuum pump is a powerful and reliable pump designed for demanding industrial applications. With a maximum pumping capacity of up to 630 m³/h, it delivers excellent vacuum generation and is ideal for use in industries such as chemical, pharmaceutical, food, and packaging. It achieves an ultimate vacuum of approximately 0.5 mbar, making it suitable for a wide range of demanding processes.
Thanks to advanced rotary vane technology, the SV 630 BF provides consistent and efficient vacuum generation. It offers high energy efficiency and features minimal maintenance requirements, leading to low operating costs. Its robust construction ensures long service life and high operational reliability, even during continuous use.
The pump is also known for its quiet operation, making it suitable for environments with strict noise regulations. The well-designed cooling system ensures stable performance and prevents overheating during extended operation. The SOGEVAC SV 630 BF is an excellent choice for companies that rely on reliable, high-performance, and cost-effective vacuum solutions.
SOGEVAC SV 630 BF Technical Data
| Technical Specification | 50 Hz | 60 Hz |
|---|---|---|
| Inlet flange connection | DIN 160 | DIN 160 |
| Outlet flange connection | DN 100 ISO-K | DN 100 ISO-K |
| Nominal pumping speed | 700 m3/h | 840 m3/h |
| Pumping speed | 640 m3/h | 755 m3/h |
| Final partial pressure without gas ballast | ≤8.0 x 10-2 mbar | ≤8.0 x 10-2 mbar |
| Final total pressure without gas ballast | ≤8.0 x 10-2 mbar | ≤8.0 x 10-2 mbar |
| Final total pressure with 1 gas ballast | ≤ 0.7 mbar | ≤ 0.7 mbar |
| Final total pressure with 2 gas ballasts | ≤ 2.0 mbar | ≤ 2.0 mbar |
| Water vapor compatibility | ||
| With 1 gas ballast | 25.0 mbar | 35.0 mbar |
| With 2 gas ballasts | 30.0 mbar | 40.0 mbar |
| Water vapor capacity | ||
| With 1 gas ballast | 11.0 kg/h | 15.0 kg/h |
| With 2 gas ballasts | 14.0 kg/h | 19.0 kg/h |
| Operating fluid | LEYBONOL LVO 130 | LEYBONOL LVO 130 |
| Minimum fluid quantity | 20.0 l | 20.0 l |
| Maximum fluid quantity | 23.0 l | 23.0 l |
| Sound level according to DIN 45 635 without gas ballast | 72 – 75 dB(A) | 72 – 75 dB(A) |
Variant Technical Data
| Technical Specification | 960867 | 960869 |
|---|---|---|
| Power supply | 3-ph, 380/400/415/690 V, 50 Hz 3-ph, 440/460 V, 60 Hz |
3-ph, 400 V, 50 Hz 3-ph, 230/460 V, 60 Hz |
| Motor power | 15 kW 50Hz / 18.5 kW 60Hz | 18.5 kW 50Hz / 18.5 kW 60Hz |
| Motor speed at 50 Hz | 820 min-1 | 820 min-1 |
| Motor speed at 60 Hz | 1,000 min-1 | 1,000 min-1 |
| Motor protection type | IP 54-F/TEFC | IP 54-F/TEFC |
| Permissible ambient temperature | +12 to +40°C | +12 to +40°C |

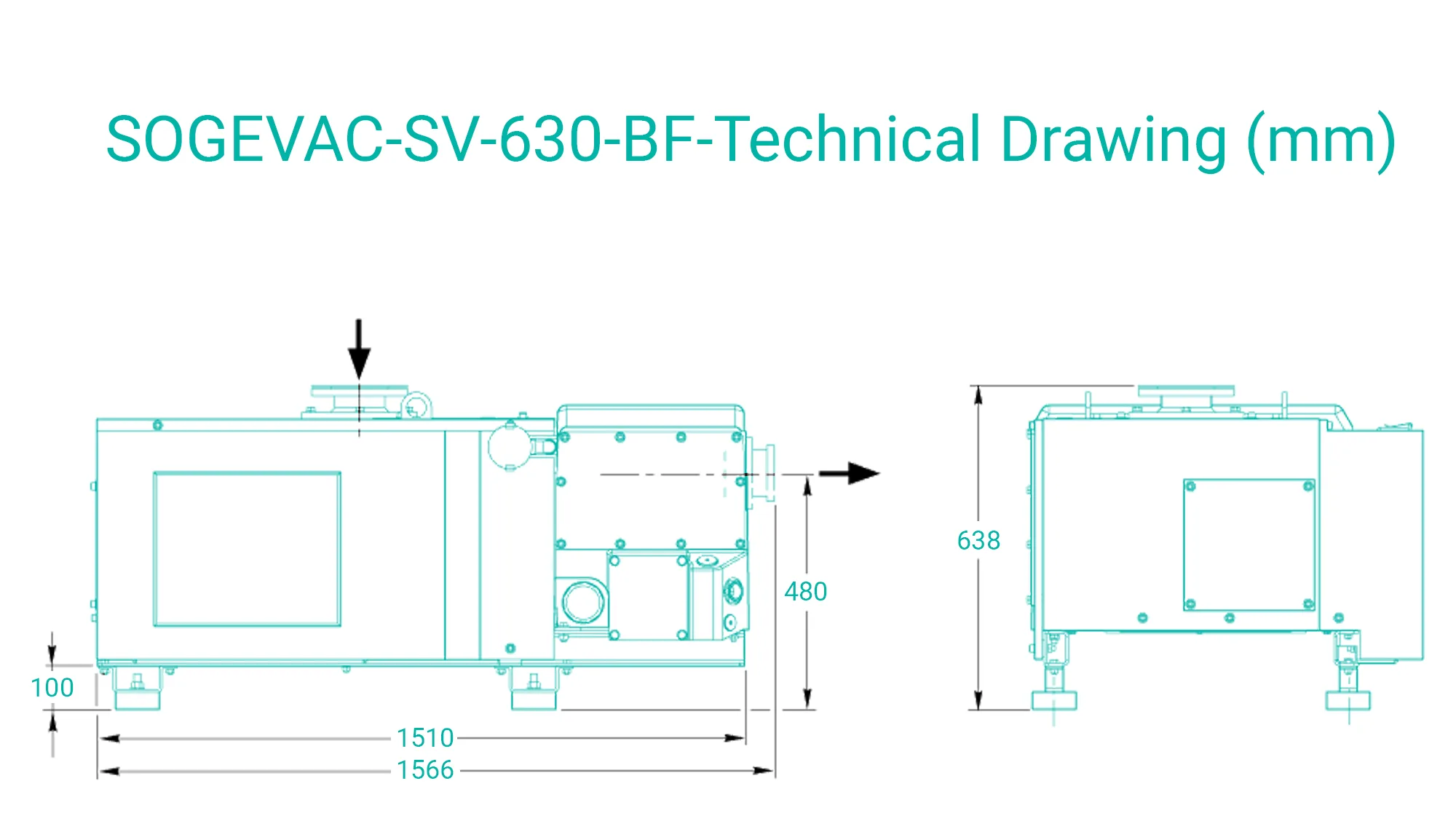

| Dimensions | see dimensional drawing | see dimensional drawing |
| Weight | ≈650 kg | ≈655 kg |
Spare Parts
| Description | Order No. |
|---|---|
| Exhaust filter element SOGEVAC SV 300 B / SV 630 B / SV 750 B | 971431120 |
| Gasket set SOGEVAC SV 500 B / SV 630 B/F / SV 750 B/F – FPM | 971437310 |
| Complete pump part SOGEVAC SV 500 B / SV 630 B/F / SV 750 B/F | 971437330 |
Oil
| Description | Order No. |
|---|---|
| LEYBONOL LVO 130 Vacuum pump oil, 1 liter | L13001 |
| LEYBONOL LVO 130 Vacuum pump oil, 5 liters | L13005 |
| LEYBONOL LVO 130 Vacuum pump oil, 20 liters | L13020 |
| LEYBONOL LVO 130 Vacuum pump oil, 208 liters | L13099 |
