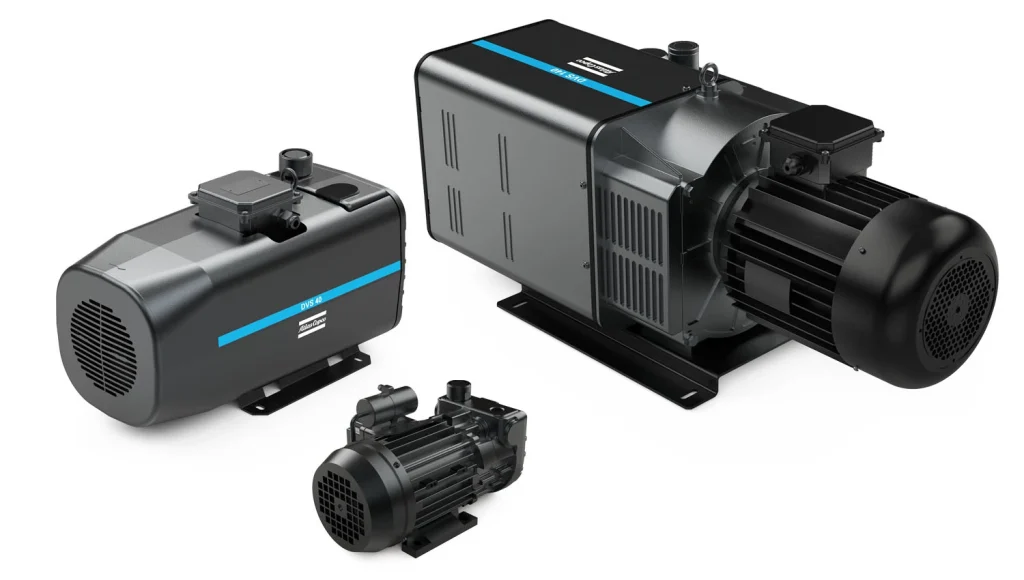

DVS series from Atlas Copco
The DVS series from Atlas Copco comprises ten dry-running rotary vane vacuum pumps. The pumping speed ranges from 5 to 130 m³/h. The lowest ultimate pressure within the series is 120 mbar, which means the pumps operate in rough vacuum.
The vanes of these pumps are made of graphite and run in the cylinder without oil lubrication. During operation, a thin graphite layer forms on the running surface, which keeps friction and wear low. The exhaust air is filtered and passed through a cooler; the pumps are used wherever oil-free vacuum is required, for example in packaging, printing or handling technology.
All models of the series are shown with their key data in the following table. Detailed data, variants and accessories can be found on ehrler-beck.com. You can request a quote from us via the shop for wearing parts such as graphite vanes and filters, as well as other spare parts.
Models of the DVS series
| Model | Pumping speed | Ultimate pressure | Rated motor power | Read more |
|---|---|---|---|---|
| DVS 5 | 5 m³/h | 120 mbar | 0.12 kW | Read more |
| DVS 8 | 8 m³/h | 150 mbar | 0.25 kW | Read more |
| DVS 16 | 16 m³/h | 120 mbar | 0.75 kW | Read more |
| DVS 25 | 25 m³/h | 120 mbar | 0.75 kW | Read more |
| DVS 40 | 40 m³/h | 120 mbar | 1.3 kW | Read more |
| DVS 60 | 60 m³/h | 150 mbar | 1.5 kW | Read more |
| DVS 80 | 80 m³/h | 150 mbar | 2.2 kW | Read more |
| DVS 100 | 100 m³/h | 150 mbar | 3.4 kW | Read more |
| DVS 140 | 130 m³/h | 150 – 200 mbar | 3.4 kW | Read more |
| DVS 12 | 14 m³/h | 120 mbar | 0.45 kW | Read more |
