The U 5.45 rotary vane vacuum pumps are an excellent choice for industrial applications that demand high vacuum performance. With a robust design and outstanding efficiency, these pumps deliver reliable performance across a wide range of processes requiring a continuous and stable vacuum. They are characterized by long service life and low maintenance, resulting in reduced operating costs. The U 5.45 series is particularly suitable for use in the chemical, pharmaceutical, and food industries, as well as in packaging and process engineering.
U 5.45 Technical Data
| Technical Specification | 50 Hz | 60 Hz |
|---|---|---|
| Inlet connection | G1¼ | G1¼ |
| Discharge connection | G1¼ | G1¼ |
| Nominal pumping speed | 45 m3/h | 54 m3/h |
| Ultimate pressure for continuous operation | 0.5 – 300 mbar | 0.5 – 300 mbar |
| Weight without motor | ≈ 31.0 kg | ≈ 31.0 kg |
| Sound level | 62 dB(A) | 64 dB(A) |
| Operating fluid | BECKER LUBE M 100 | S 100 | SL 100 | BECKER LUBE M 100 | S 100 | SL 100 |
| Operating fluid quantity | 1.0 l | 1.0 l |
Variant Technical Data
| Technical Specification | 42088401300003GW | 42088422300114GW | 42088453300003GW | 42188407300088GW |
|---|---|---|---|---|
| Power supply | 3-ph Δ230/Y400 50 Hz | 3-ph Δ230/Y400 50 Hz Y460 60 Hz 3-ph Δ220/Y380 50 Hz Δ230/Y400 60 Hz 3-ph Δ240/Y415 50 Hz Δ265/Y460 60 Hz |
3-ph Δ230/Y460 50 Hz YY208 60 Hz YY230/Y460 60 Hz Δ200/Y346 60 Hz | 3-ph Δ200/Y346 50 Hz Δ220/Y380 60 Hz Δ400 60 Hz |
| Motor power | 0.55 kW 50 Hz | 0.66 kW 60 Hz | 0.60 kW 50 Hz | 0.72 kW 60 Hz | 0.55 kW 50 Hz | 0.66 kW 60 Hz | 0.60 kW 50 Hz | 0.72 kW 60 Hz |

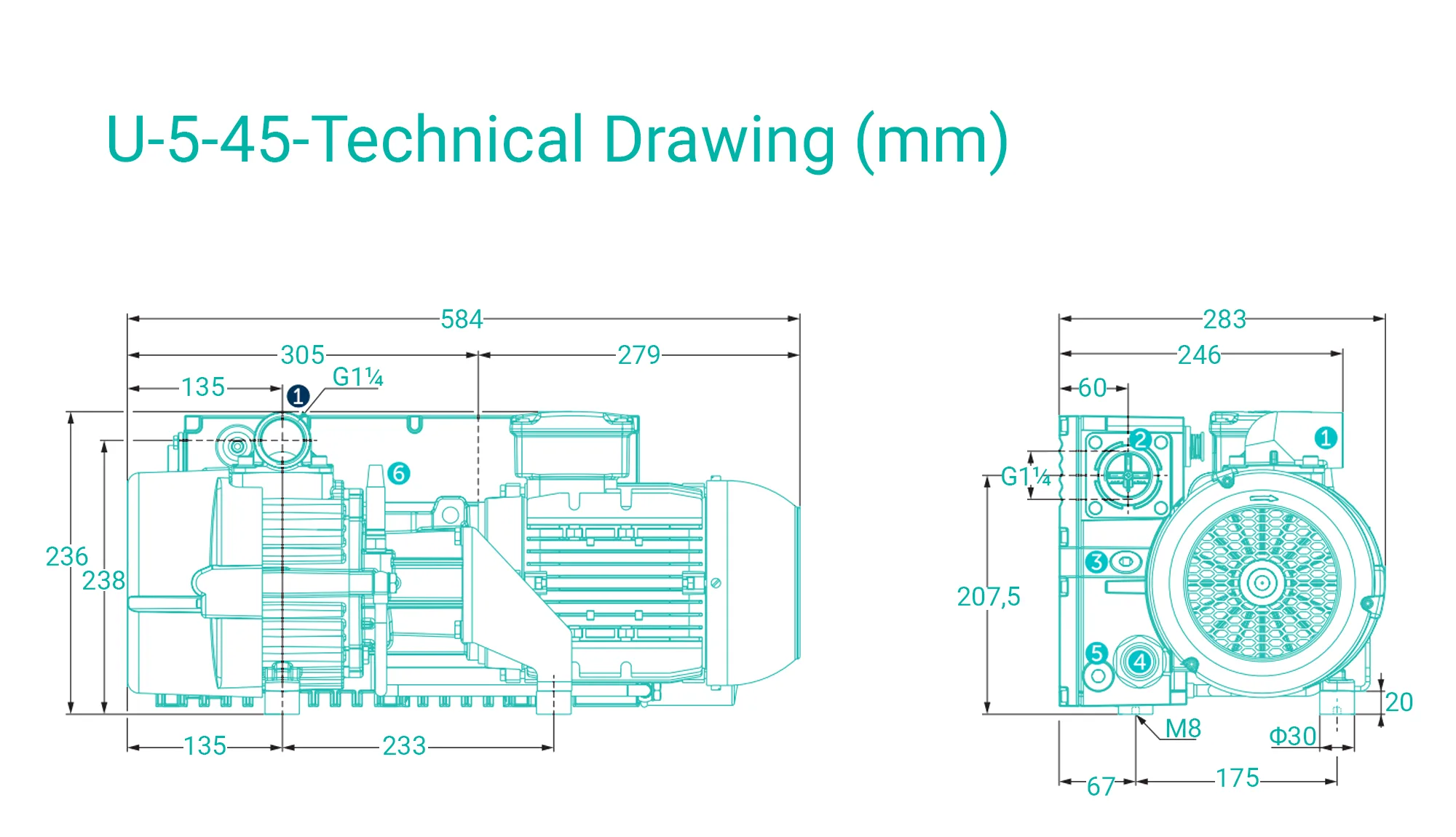

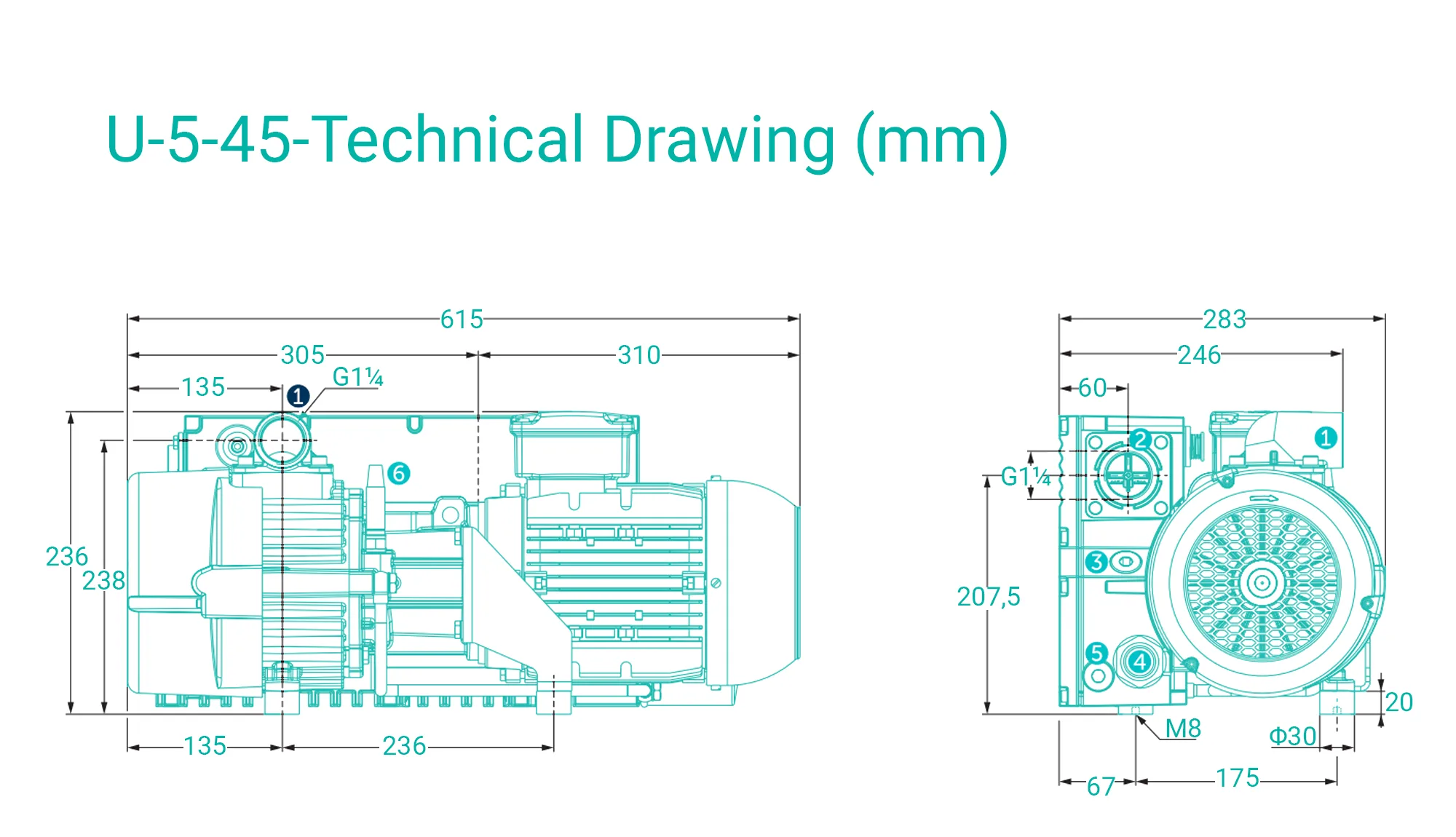

| Dimensions | see dimensional drawing | see dimensional drawing | see dimensional drawing | see dimensional drawing |
