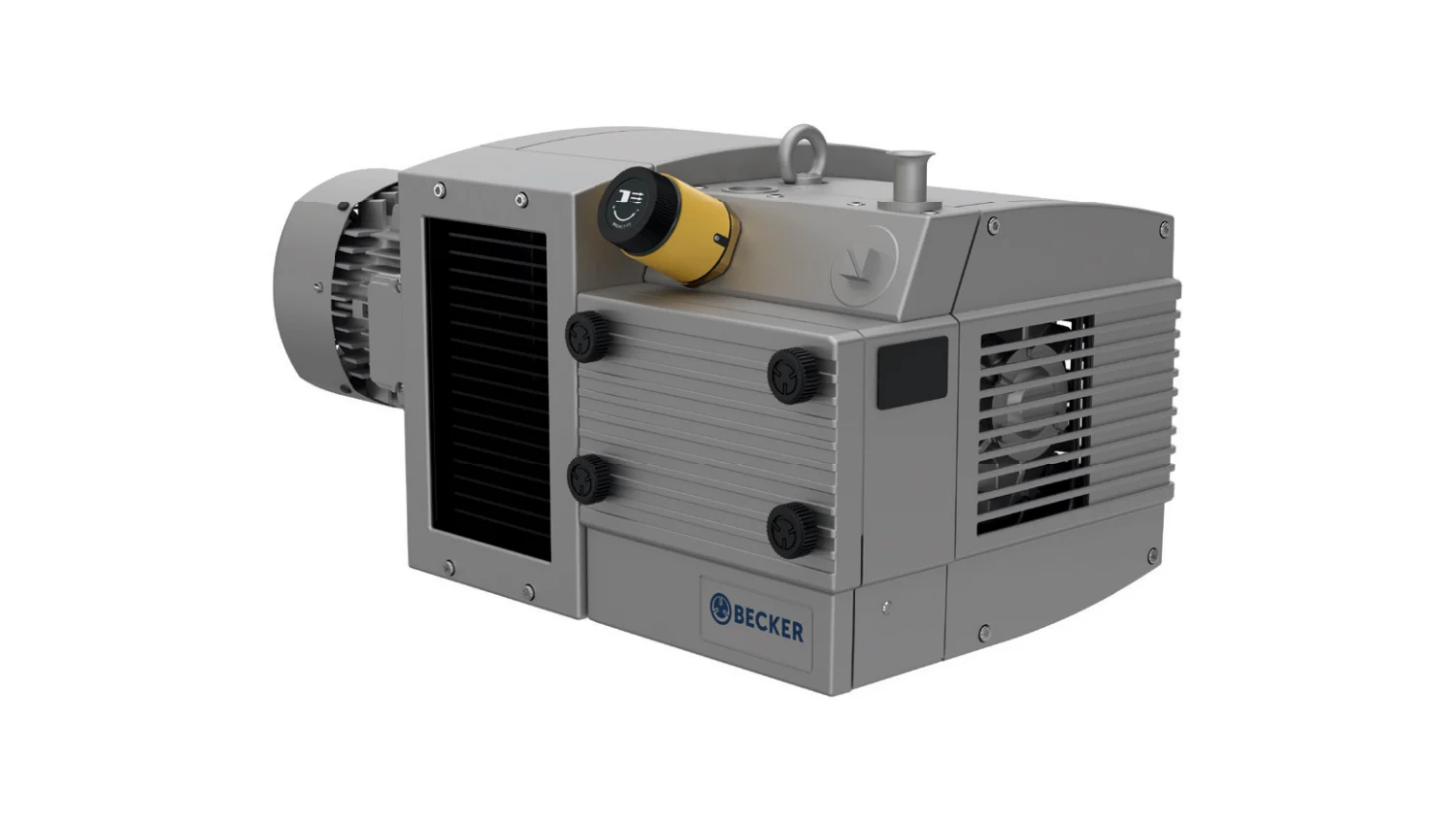

The KDT series is a range of dry-running rotary vane compressors from the manufacturer Becker. It comprises four models, from the KDT 3.60 to the KDT 3.140, with a volume flow of 54 to 129 m³/h.
As rotary vane machines without oil lubrication, the compressors deliver oil-free compressed air with a uniform, low-pulsation flow. The vanes are the central wearing part and can be replaced as part of maintenance. The units are used, among other things, as a blast air source in printing and packaging machines and in pneumatic conveying.
All four models and their most important data can be found in the table below. Further details, versions and accessories are described on ehrler-beck.com. If you need vanes, filters or other spare parts, you are welcome to submit your request via this shop.
Models of the KDT series
| Model | Pumping speed | Ultimate pressure | Rated motor power | Read more |
|---|---|---|---|---|
| KDT 3.60 | 54 m³/h | – | 2.2 kW | Read more |
| KDT 3.80 | 66 m³/h | – | 2.2 kW | Read more |
| KDT 3.100 | 99 m³/h | – | 4 kW | Read more |
| KDT 3.140 | 129 m³/h | – | 5.5 kW | Read more |
Replacement vanes from Ehrler & Beck for this series
Our own vane sets for Becker, Rietschle and Busch pumps: at a fixed price and ready to order.
Vane set 901334-4 for Becker KDT / KVT 2.140 and 3.140, KL 1.140KDT 2.140, KDT 3.140, KVT 2.140, KVT 3.140, KL 1.140245.00 € All prices net, plus VAT and shippingView the vane set
Vane set 901330-4 for Becker KDT / KVT 2.80, 3.60, 3.80, Picchio 2200KDT 2.80, KDT 3.60, KDT 3.80, KVT 2.80, KVT 3.60, KVT 3.80, Picchio 2200198.00 € All prices net, plus VAT and shippingView the vane set
Vane set 901333-4 for Becker KDT / KVT / T 2.100 and 3.100KDT 2.100, KDT 3.100, KVT 2.100, KVT 3.100, T 2.100, T 3.100214.00 € All prices net, plus VAT and shippingView the vane set
