Atlas Copco DZS 500 Claw Vacuum Pump
The Atlas Copco DZS 500 is a high-performance dry claw vacuum pump engineered for industrial processes requiring maximum reliability and minimal maintenance.
Manufacturer: Atlas Copco
Category: Special Offers
Order number:
The Atlas Copco DZS 500 is a high-performance dry claw vacuum pump engineered for industrial processes requiring maximum reliability and minimal maintenance. Its contact-free, wear-free claw design delivers long service life, consistent operation, and reduced total cost of ownership. Powered by a durable 9.2 kW three-phase motor, the DZS 500 ensures stable performance during continuous and variable load conditions. Offered as a new unit, it is ideal for centralized vacuum systems, packaging applications, pneumatic conveying, and modern manufacturing environments.

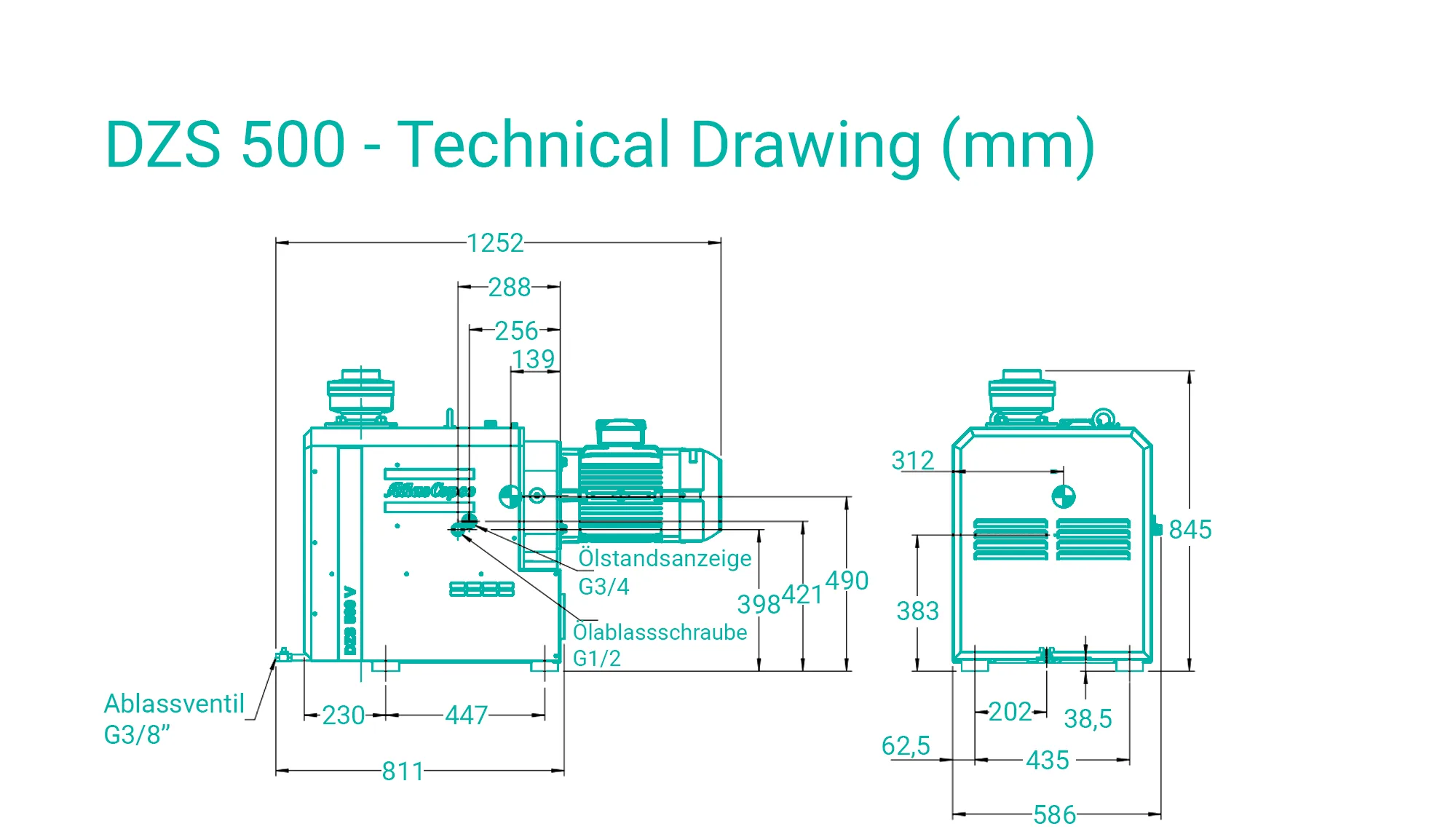

DZS 500 Technical Data
| Technical Specification | 50 Hz |
|---|---|
| Nominal pumping speed | 500 m3/h |
| Inlet connection | 3″ BSPP (G) female thread |
| Inlet connection | 2 1/2″ BSPP (G) female thread |
| Ultimate vacuum | 200 mbar(abs) |
| Supply voltage | 3Ph 380–400 V |
| Motor Power | 9.2 kW |
| Noise level | 76 dB(A) |
| Weight | 397 kg |
